After getting the ASUS ZenBook U305UA for six days, I was quite familiar with it for six days. I used to call it " UU " in the text . In those six days, UU first brought me. Amazing, secondly stimulated my thirst for knowledge, then entertained my soul, and finally let me finish the work safely and smoothly , summing up the bit by bit and the feelings between us over the past few days . The definition I gave UU was "Elegant frenzy!" Because, UU is the trend of science and technology and aestheticism, is the combination of extreme performance and fashion aesthetics model, when the performance is elegant and at the same time, also picked up my heart that the most primitive mania!
When you first saw it, it was amazing!
To be honest, ASUS notebooks have never been used before! There is very little attention. The reason is very simple. I take care of one thing. First of all, I don’t have so many tall people in my bones. The impression of Asus started on Asus’s motherboard. At the time, as a poor student, I just envied others to use it. After work, , It is even the unit to the standard association, but also need not pay attention. But now it's not the same. After several years of hard work, my brother's pockets and vision are gradually increasing, so now I'm also a man who pays more attention to taste! I have more contact and understanding of some good things, but I’ve seen UU at first sight !
“Brother, this book is very handsome!†At the scene where I took the evaluation photos, a young man passing by said such a sentence. He shyly answered his three words “ah, huh, huhâ€. Although the words are concise, they still have a very good heart. Sweet! A sense of success with passive installation B and the resulting success!
"Finding the balance between aesthetics and science and technology" is ASUS's pursuit of the concept of notebook manufacturing. Applying this concept to UU reflects the "feeling" of my senses. In the world, we often use “inconceivable†to describe many things. Among them, time will undoubtedly be ranked first, because it will always take a simple and eternal gesture in the ticking of a flower, blooming and blooming, and UU will use it. The slim two wings, persistently chasing the hour and minute hands, pictured at this angle, momentarily, my eyes seemed to follow the dazzling stream of light refracted on the surface of the wire, and unknowingly leaped into the vortex of time, experienced a technology and Aesthetic grand experience.
Â
The Taoist said: "Avenue to Jane," UU 's overall design does not have any redundant drag, this little fanatic is definitely a fashion show that can show a show in the Paris Fashion Week show, is indeed very beautiful. The aluminum-magnesium alloy fuselage under the Asus logo is set off with a golden body and a slightly pink color. A slightly matte metal texture process is used to make the body more beautiful and at the same time give the user an excellent feel. However, this type of housing also has one of the biggest drawbacks: it is like a stove in the summer and ice in the winter.
At the same time, UU 's angular design is mellow, it is said that with the diamond cutting process polished out of the frame, this combination will be soft and hard organic integration together, highlighting a high-end temperament, in line with the positioning of product users. In addition, all well-formed kits must be polished, especially in curved parts, which require high mastery of the processing and polishing process. Therefore, these key processes are manually completed by ASUS' experienced technicians. You know!
However, in such a simple form, it contains the ultimate intention. The thickness of UU is about 16mm thinner than the diameter of a one-dollar coin (25mm) . The weight of 1.3kg allows us to travel on business and carry it around without any burden.
We often say that the details determine the success or failure. In the eyes of wisdom, a tree, a sand and a stone, all have deep meanings. For a piece that is approved by the user, it is precisely the details that best reflect the designer’s Ingenuity. Similarly, in UU 's body, there are also amazing details, which is the design of these details, so that UU can achieve madness in the hidden. In addition, it is precisely these details of the design, inspired my thirst for knowledge!
Details, knowledge!
UU 's display is 13.3 inches, 1920 × 1080 resolution, IPS technology, viewing angle official data is 178 °, but these are not the focus, the focus is I want to talk about UU matte screen, we all know that the common screen There are mirror screens. The high-transmittance film on the surface of the screen can improve the brightness, contrast, sharpness, and color reproduction of the monitor. However, the problem with this type of screen is that the reflection is serious, and the more dim and dark the environment is, Its ability is greater, but it often travels, travels outdoors, waiting rooms, waiting halls, trains, etc. When we use the tablet or laptop, a small light source behind it is absolutely deadly harassment, so the fog Face mask, I do not need to say anything more, you want to use UU as a mirror, unless the camera is open, otherwise no way.
We start exploring from outside to inside. As a good laptop, I think it is not enough to have good portability. UU emphasizes minimalist design and emphasizes thinness, but one of its killers is to insert two in a light enough body . USB3.0, 1 USB2.0 interface, but also equipped with SD card reader.
In addition, Mini HDMI and headphone jacks are also reserved, and the charging hole is designed on one side. This design can make the wires all concentrated on one side, and the spacing between the interfaces is also reserved enough. I believe there must be a friend. To the old book too close to the interface, I Nima, simply anti-human, and designed two or more interfaces can not be used at the same time, you say lacking.
Also need to explain, USB 3.0 is theoretically faster than USB 2.0 can provide 10 times the transmission speed, and can bring more power to facilitate the fast charge, long after the mobile phone and tablet operating need a short time to add power, UU delighted me, because it comes with the USB Charger+ charging technology. Even when the computer is turned off or in hibernation, it can quickly charge the phone and tablet, charging about 50% faster than an ordinary USB 2.0 port . In addition, UU uses the 802.11ac wireless network standard. Under high-speed 5G networks, the transmission speed can reach 867Mbps , which is 3 times that of the traditional 2.4G network .
Well, let's explore ASUS B technology, called Cool Cooling Technology. Cool Cooling Technology refers to the use of high-tech alloy materials to improve thermal conductivity and optimize heat sink deployment. Heat can form strong convection in the heat sink, quickly transfer and disperse. The above two figures are the location of the cooling holes. The design is very careful, there will be no hot air to our left and right hands, but there can be feeling on the legs.
I used Master Lu to perform a temperature stress test on the UU . From the above picture, it can be seen that when the CPU usage reaches 80% or more, the temperature will rise rapidly to about 60 °C. At this time, the temperature will form a stable situation. exhaust fan to work, after ten minutes of the test, the temperature is stable, the maximum does not exceed 66 ℃, after the cessation of stress tests, the temperature will drop sharply about 15 ℃ in 10 seconds, and then return to normal operation after about 10 seconds Temperature 36 °C. So the madman is not white, Niu B !
 UU 's high-accuracy touchpad is one of my favorite points. First, the touch is not particularly good, and it is very difficult to leave fingerprints. This should be improved.
However, UU 's touchpad is also equipped with the ASUS Smart Gesture smart gesture input technology. This function has reversed my point of view. I like this function very much and it is too convenient. Older notebooks are simply burst. I feel that with this function, I do not use the left and right buttons, but it is recommended to add a user-defined time setting option in the gesture of a single finger. The system default time is too short.
Â
Under normal circumstances, the small size of the books will compromise the space, shrinking the keyboard area, so most men are reluctant to choose a small size. However, UU 's keyboard design did not show a cramped, full-size, one-piece, back-mounted, seamless islanding keyboard with an improved design with a 1.5-mm keystroke and fewer key-floats, under a long input process. Can provide a solid, comfortable typing experience, playing games I think no keyboard is also OK .
For special keys, such as caps lock and power , the indicator light is set directly on the key, I feel good, but individuals are a little accustomed to power design in the right side of the del , I press wrong several times. In addition, this keyboard is also very easy to leave fingerprints, Nima, police officers do not have to use special syrup, take a photo directly back to identify! In addition, backlighting, backlighting, backlighting, and important things are said three times. Without backlighting, I am very unhappy. Is it necessary to train us to turn on the lights and use a laptop to protect my eyesight?
Â
UU two speakers designed in the fuselage on both sides, but said the truth, no matter how sound the notebook can not satisfy my ears, although UU has been the addition of more than 2-layer voice coil layer 2 ordinary notebook, but the actual experience Still not ideal, it is recommended to wear a good headset, it does not affect the enjoyment of ASUS professional sound adjustment force - "gold ear" team's results, but also feel the UU sound of nature.
Entertainment, my heart!
When it comes to entertainment, people most naturally think of singing and dancing, but UU gives me more than that. Because the song and dance are flat, I'll get a movie, but UU gave me a stimulus first! Since we are excited, we will take a step further. I believe my little audience has endured it for a long time. We have had a lot of monitors and keyboards. It involves the substance. It's right, motherboard, CPU , memory, hard drive, Graphics card debut!
First, let's take a look at the UU 's hardware configuration. Then I will share my pleasure with everyone. In terms of hardware, UU first selected its own motherboard, CPU for Intel i5-6200U , 8G of DDR3 memory, while equipped with a 512G solid-state hard drive, the graphics card is set Intel HD Graphics 520 . In fact, there are three models available for sale on this model: i7-6500U , i5-6200U and i3-6100U . Personal advice, for the quiet gentle sister or quiet little man, usually watch movies, chat, play games, check information, do homework, write a little diary, then i3 is enough. If you play games or pursue higher performance, then choose i5 because i5 has more Intel Smart Core than i3 , and it will automatically accelerate when running large programs. When it is not used, it can save power. For enthusiasts, or need to program, or small local tyrants, you can choose i7 , i7 is not just an elegant fanatical!
Â
Well, we first talk about the UU "Motherboard" motherboards, notebook motherboards, may rarely be noticed, but powerful Asus motherboard we need to mention it, in June 2015, two months before the release of Intel Skylake, Asustek has already taken the lead in supporting the sixth-generation architecture of this Intel on its own machine Zen AiO . It is not too fast for Asus, but the opponent is too slow. Niu B has no need to talk about it. In addition, half a year before UU , ASUS Zenbook Series UX305CA notebook has already begun to be equipped with Intel Skylake processor, with ASUS R & D capabilities, 305 " CA " is still so bovine B , as UU , 305 " U " A naturally not to mention.
The CPU can be called the life of a notebook, and it looks like a small chip, but it determines how much power the notebook has. Before speaking about the i5-6200 , let's take a look at the history of the intel series CPU in recent years. First of all, say the Pentium B series and the Celeron (Celeron), which are Intel's low-end mobile CPUs , and their computing power can only be described as so-so. And graphics processing is very poor, such as B820 , B960 , C-1000 , this U machine, when the price is basically below 2,500 yuan, performance is not enough to use one, the family is less than the difficulty level, was basically to stay away . Then said that Intel Core 2nd SNB , three generations of IVY , although both are called i3, i5, i7 , but it should be noted that their suffix number is not the same, the second generation is SNB architecture, 2D transistors. The third generation is the IVY architecture, 3D transistors. For example i3-3210m, there are at least 20% of the gap between the second generation and third generation of i3-2310m in terms of performance, which is why it is that IVY is 22 nanometer technology, while SNB is 32 nm, so, six generations of 14 nanometer mean what? Means faster! In fact, friends who played overclocking before may be more familiar with this parameter, with it, overclocking is worth the operation.
Â
The UU is powered by an Intel i5-6200U processor. This is a mid-range version of this series. We can achieve our different needs by setting the UU to balance mode and high performance mode. More large software, as can be seen from the figure above, UU in the "high performance" mode, "balanced" mode processor, some subtle differences, that is, in the performance mode, CPU voltage is 0.978V , the core frequency is 2692.74MHz , and 0.659V and 498.66MHz respectively in the balanced mode , which is the reason for the difference in processing speed in the two modes, because "balanced" is higher than the "high performance" in the chipset core voltage and core speed With the decline, so the speed will naturally follow it down, but also need to mention is that this i5 6200U maximum Turbo frequency can reach 2.8Ghz , the actual energy of the small fanaticism is not burst it!
Below we talk about memory, many people will ask, how much memory is enough? In general, 4G can be said to be enough, enough for all day-to-day procedures, and more visually. If you open 20 pages, you won't feel the card. However, if it is a game player, 8G is a must, as the UU of the small fancier , ASUS gives it 8G of memory, and is a dual channel, there is an additional slight increase than the single-channel performance.
Here is the hard drive. As can be seen from the above figure, UU selected a Hynix 512G solid state drive, first talk about intuitive experience, boot speed, win10 , 4 seconds! I Nyima, first contact with win10 and SSD , brother is indeed very exciting, but also very moving!
From the emergence of SSDs to the popularity, in only a few short years, the current SSD capacity is getting larger and the price is getting cheaper and cheaper. And compared with the traditional HDD advantage is obvious, as for more data I do not list here, we can find out about SSD related evaluation, in addition, I in Jingdong query several mainstream SSD hard drive prices to illustrate UU use The madness of 512SSD .
 Â
Brands
capacity
Price ( yuan )
Samsung
256G
1499
512G
2699
Puck
256G
759
512G
1799
Creative
256G
659
512G
1499
Â
Prices of SSD Solid State Drives from Jingdong ( M.2 2280 )
Â
Â
Finally, we talk about graphics cards , HD Graphics520 , which is integrated on i5 . Some people may have to ask how big the memory is. In fact, its memory capacity is shared by system memory and allocated dynamically by the system. Therefore, there is no capacity. In other words, once again, UU 's motherboard uses dual channel memory, which can further enhance the performance of the core graphics card.
In fact, we can set the minimum amount of memory in the UU 's BIOS . As you can see from the picture, the system defaults to 32M and the maximum is 512M . If you want UU to be more wild in the game, you can set it to 512M . For better results, let's emphasize that this setting only modifies the pre-allocation size of the video memory, that is, the minimum value allocated to the video memory at boot time, and it is to occupy memory. If you do not play games often, 32M is better.
Â
In front of the basic configuration are all talked about, then so many Dongdong together will be the effect of God horse, first use Lu master to run a run, for the selection of Master Lu is not Geekbench , Cinebench or 3dmax , I think Lu The master is first of all the work of our countrymen, and everyone is very familiar with it. He has made a bunch of foreigners' software to make Xuan Xuanhuo, Yunshan Mist cover can only fool the white, let the real big God joke, so he chose Lu master, and as a result everyone can See, a combined score of 107,082 , with 75,184 processor performance points, 11190 points disk . It can be said that this score is still relatively high, in line with the performance of the Intel Core i5 6200U .

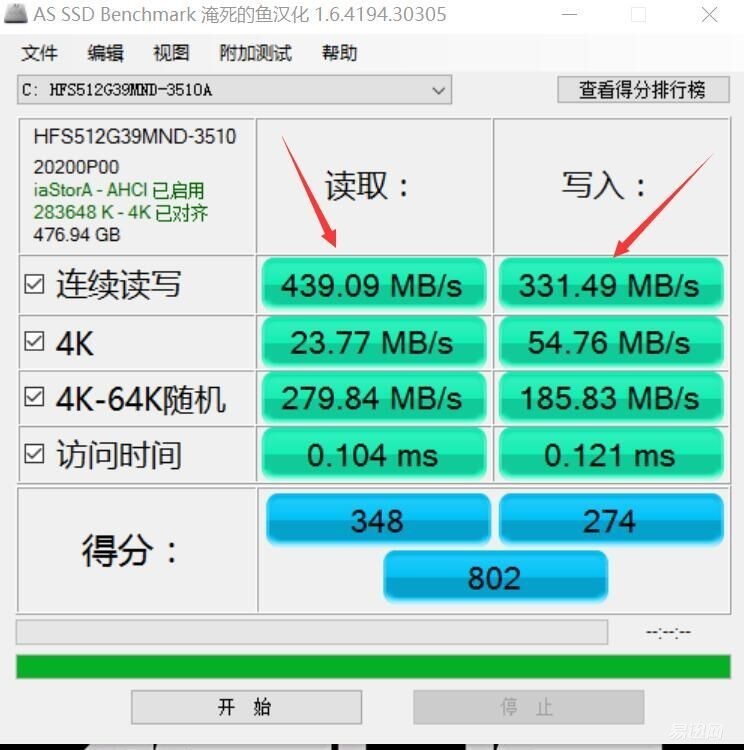

Since I was always delighted with 4s booting, I independently tested the read speed of the hard drive. The software used was an AS SSD with a score of 802 , a read of 439MB/s , and a write of 331.49MB/s . The UU seems to be using a file . The eyes ask me, is it enough?
Return to work!
Â
That's right, what you see is Win10 . UU preinstalled system is Win10 . If you don't have UU , I really don't know when you can use the latest system of Microsoft's big brother. Mertro interface is very domineering, but also left the future. A lot of room for development. Through the use of it, we found that we really need to change a lot of habits, but fortunately, my ability to adapt is also OK, and now the basic set of functions has come in handy.

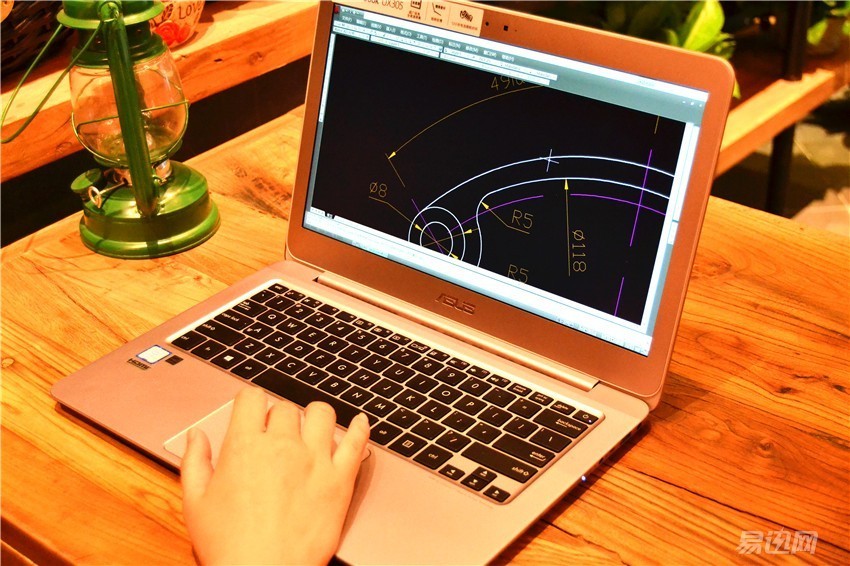

In fact, for me, the most use of books is still for work, familiar friends must know, Autocad2009 , graphic design necessary, measured running smoothly, is the font is too small, you can adjust the resolution correction, but very troublesome.
The first time I finished the evaluation article on the product being evaluated, although it is a mouthful, I believe you can understand it. Thanks for the new test! Here's a sentence, if you like to put your notebook on the leg of the classmate, UU will only generate heat when you play the game, not suitable for the legs, but if you do some web browsing, text editing, it is absolutely no problem.
Finally, let's talk about the battery. UU 's battery design capacity is 56041mWh , full charge capacity 56629mWh , each one feels UU 's endurance is good, 56Wh battery, if you moderately work, you can normally use more than 8 hours, even if you look at the 720P video, you can also achieve Can be continuous for more than 5 hours, in short, without power, the day is basically no problem. UU is the wolf, it is crazy to give electricity!
But when the remaining power is 7% , the system will prompt shut down, then the system will run very slowly, the feeling of hypoglycemia must be charged.
This is the UU 's charging situation, from 7% to 100% , which takes more than two hours. During the charging period, the website was visited for about half an hour.
to sum up
Â
PEGASUS began in holiness, perfect and pure, with a "Master of the Chinese 'expectations, after 27 years of hard work and struggle, ASUS has always been persistent pursuit of excellence. Motherboard, a first "on-board PBSDRAM solution" K 7 motherboard first sheet, the first sheet Pentium 4 Board; "880 g super thin and light", "Power 4Gear + intelligent power skills", one works with ASUS Refresh my eyeballs.
I had the privilege of trying out UU with the power of Sina.com , which enabled me to have a more in-depth understanding of the "simple and intelligent design philosophy". When Asus put the ZENBOOK U305UX in front of the user, both in terms of vision and touch Both auditory and meticulous design interpret this seemingly simple and profound meaning with extreme vividness.
 In my opinion, ZENBOOK U305UA is ASUS combined technology and beauty to create another elegant fancier!
advantage:
1 , beautiful appearance, fine workmanship, light weight and easy to carry
2 , To make a lot of optimization design for thinning, high space utilization
3 , matte screen is a great love, all kinds of environments can perform very well
4 , thin to the new hot tube
5 , full symmetrical large size speaker
 Â
Disadvantages:
1 , drawing shell easy to stick fingerprint
2 , the power button position is easy to touch
3 , the screen axis opening and closing angle is too small
4 , the power supply is not compact enough, the plug can not be folded
5 , the keyboard does not have backlight, although it is not very useful, but it has obviously become a high-end standard with
