The flagship card is always the most sinister, and the saints say: Non-rich cannot be bought. It was hard to borrow a GTX1080 and it was specially designed to drive. He is also an old driver who has been riding a car in Qiu Ming Shan.
To drive, of course, there are reliable equipment
Sun drying my configuration first:
I5 6500 BLK overclocked to 4.38G
ASRock Z170 ZX6
Shiyan DDR4 2666 15-15-15-35 1.2V
Innovision GTX1080 Ice Dragon Puket M7V 256GB SSD
Kyushu Fengshen Captain 120
Rhine P1050 Rated 1050W Platinum Power Supply
I say curry, ah, do not underestimate my i5 6500 that this value is only about 1000 big yuan, after opening BLK overclocking, 4.48G on this goods is not a problem, run completely test must 4.38G
If you don't agree with you, you don't want to talk to local tyrants and throw you an i5 6500 that runs to 4.38G.
Super Ice Dragon version out of stock, had to hold a Ice Dragon Edition on the train to go
Are super Saiyan fierce or Saiyan? Of course, the former
Ice Dragon version can be predicted is that the frequency is a bit lower, the playability is not super ice dragon version high
GTX 1080 Ice Dragon is a three-fan fan version of Inno3D GTX 1080 Ice Dragon Super Edition. It uses a HerculeZ X3 Air Boss radiator. The main difference from HerculeZ X4 Air Boss is that HerculeZ X3 Air Boss cancels the power supply. The module cooling system directly adopts the configuration of three fans and five heat pipes.
In terms of specifications, Inno3D GTX 1080 Ice Dragon also adopts PG431 enhancement program, built-in 2560 CUDA cores, equipped with 8GB/256Bit large capacity GDDR5X, frequency specification 1759~1898MHz/10400MHz, equipped with a DVI -D, 1 HDMI, 3 DisplayPort interfaces, also need 8+6Pin external power supply.
Do not rush to run, not to worry, continue to participate in the sunburn in other equipment

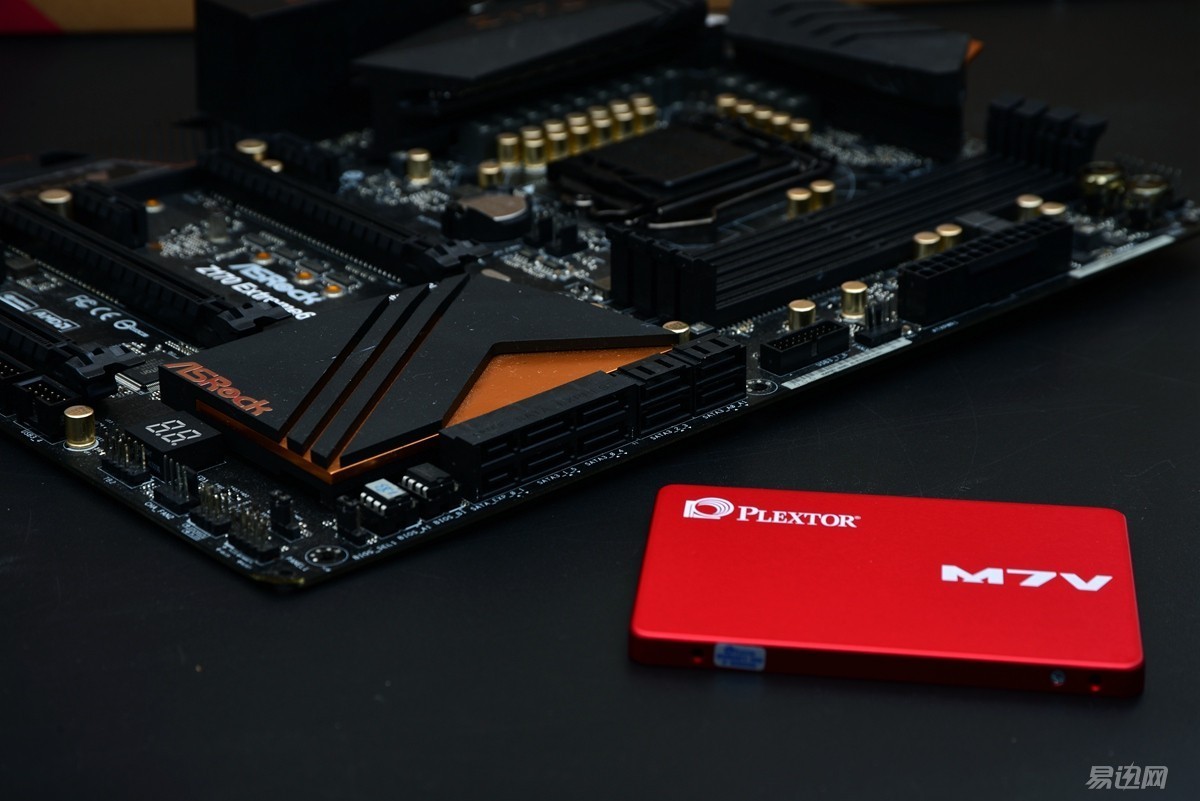

Although there is Ultra M2 interface, there are Intel 750 high-speed M2 SSD, but for the average person, it is still 2.5-inch SSD benefits
Look at the price share, SATA3 6Gbps speed can only tolerate
M7V currently has two specifications of SATA III and M.2, with capacities of 128GB, 256GB, and 512GB, respectively, and a three-year warranty. As the first TLC SSD product, Toshiba uses high-performance 15nm TLC flash memory particles with over 2000 write cycles. The main control uses the fifth-generation Marvell 88SS1074. This host uses third-generation NAND Edge error correction and low-density parity. Verification technology supports TLC, SLC, MLC, and 3D flash memory in 15nm process. It can be widely used in consumer and enterprise-class particles, and supports ONFI 3, Toggle2 interface, with a maximum speed of 400MT/s.
Running points are still very good and powerful
In terms of power supply, the only platinum power supply on my hand is sacrificed
Seasonic Platinum Rhine 1050W this power is not small, the side is full black paint, there are some printing strip design, but the rhyme and platinum are also printed words, but more introverted is not large. At the top is a complete CNC aluminum alloy full impact screen baffle, the design is very good, in order not to affect the air intake, Haiyun nameplate is located below, the top is full of red honeycomb design, and it looks very noble atmosphere.
The tail is also a cooling window for a large number of honeycombs. Dirt can be seen inside the coils covered with insulation and two sets of silver heat sinks and other materials. The layout is full and it looks quite adequate. On the right we see a large switch and access slot, next to a 100-240V broadband wide voltage access instruction
On the other side is a large number of full module access slots, all excuses have detailed instructions. This specification is enough to deal with the mainstream of the 4WAY market. The next row is all 7 PCIE 8PINs. According to the current highest flagship dual 8PIN, a group of 8PINs is missing, which can be transferred by PCIE6PIN. In short, the rhyme of the basic deal with 4WAY, 1050W is a bit far-fetched but powerful load can be satisfied, so R9 290X 4CF or GTX TITAN BLACK 4 SLI is still possible.
There is a blue sticker on the right side of the switch, this switch is Haiyun exclusive fan mixing technology, just like the pirate ship HX1000I, support in the comfortable 25% or less than 260 watts when the fan does not turn completely completely Run in silent mode. Even in automatic mode, the Sanyo Ace 9S's fans are very quiet and fully silent.

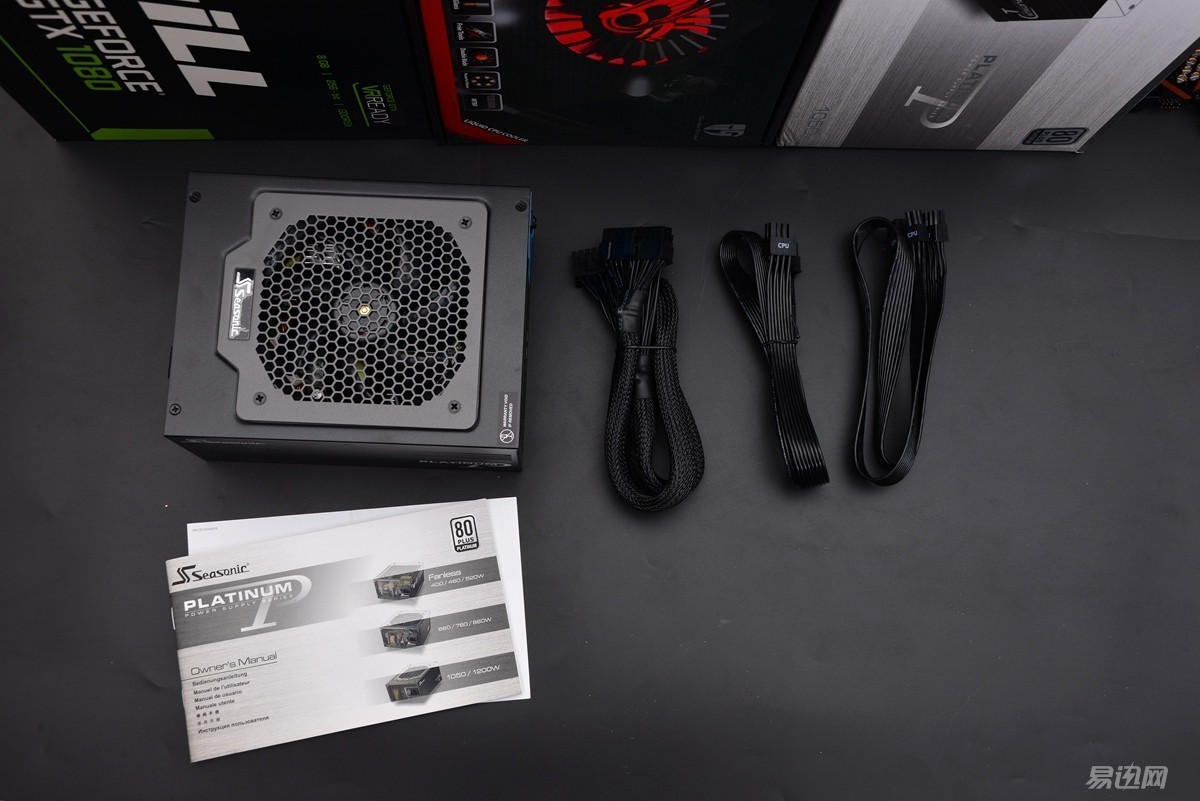

Accessories include a high-voltage 1 meter power cord, a variety of cable ties, magic tape, screws, utility manual warranty card module wire storage bag. The included module wires are as follows:
Seasonic Platinum 1050W module wire number and length:
MB20+4 Needle---X1(590mm)
CPU4+4 pin---X1(650mm)
CPU8 pin --- X1 (650 mm)
PCI-E 8-pin (6-pin 2) --- X8 (600mm)
SATA---X12 (530mm+150mm+150mm)
SATA---X2 (530mm+150mm)
MOLEX---X3 (550mm+150mm+150mm)
MOLEX---X2(350mm+150mm)
Well, after the introduction of the equipment, the mountain bike
1.3dmark11
Cpu default, 3dmark11 X mode is 9244
Cpu overclocked to 4.38G, 3dmark1 X model is 9763 points
2. New 3dmark firestrike scenes, EX mode and Ultra mode
Cpu default frequency, EX mode is 9004 points

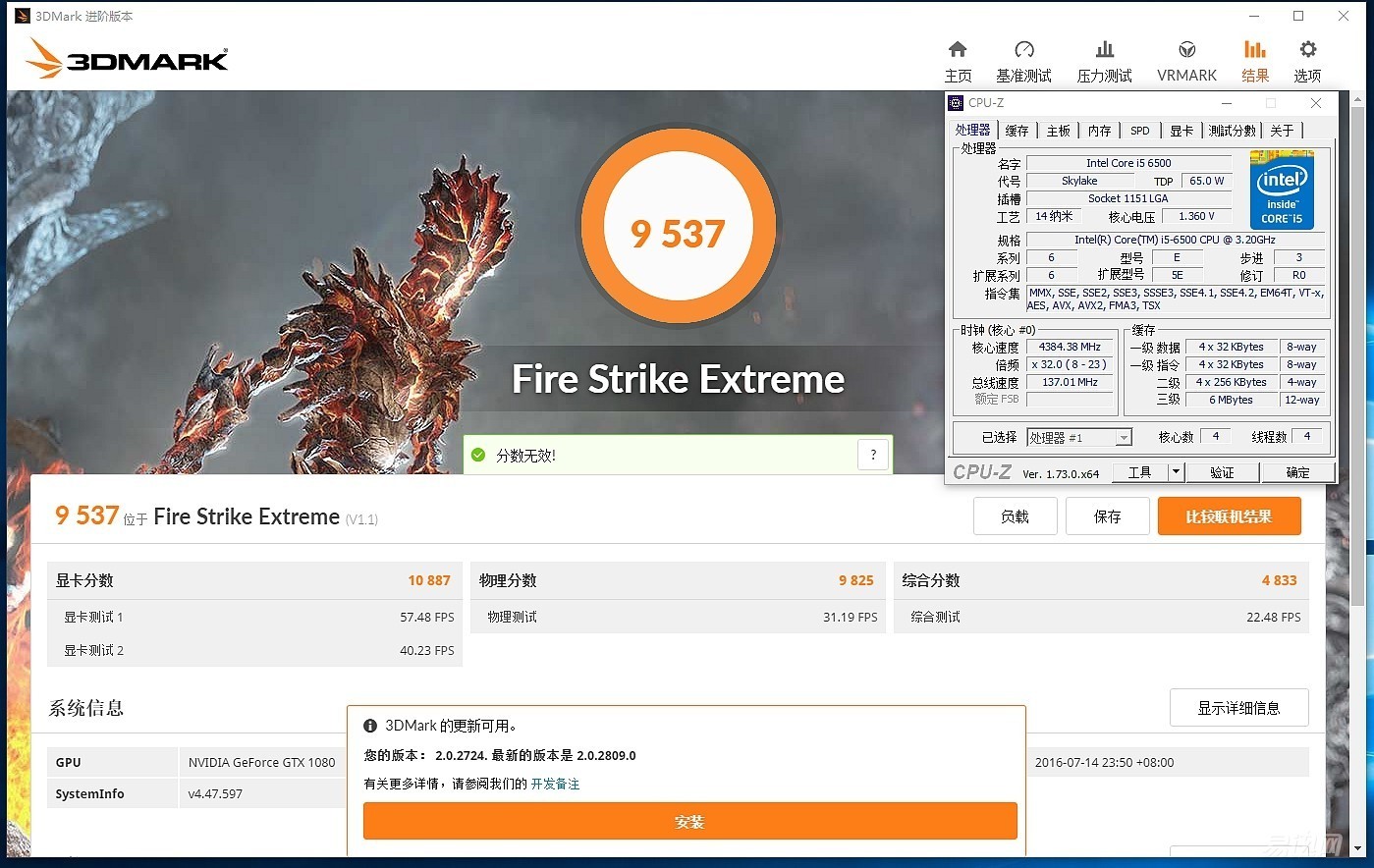

After the cpu overclocked to 4.38G, the score of the EX model also surged to 9537 points.
Ultra mode, that is, 4k resolution mode, the score is 5035
GTX1080 is really good and powerful
Let's take a look at the other regular tests below 1080p
From top to bottom, heaven, valleys, hot blood, killer 5 pardon, Final Fantasy 14, Rainbow Six, God Steal 4, Tomb Raider 9, are routine tests
Can see that 1080p resolution has not been tested GTX1080
In the follow-up, the family will come back with high pressure
