Foreword
It hasn’t been published for a long time recently. Originally it was possible to catch up with a starter. After the film was finished, it was delayed by some personal things. Sairui Rival 700 still remembers to be listed and released before the end of the year, but the Bank of China seems to have not yet arrived. The new flagship level of the next home I have played, has been mourning the Rival700 feel, after all, this is also a Sai Rui made a conscience for many years!
〓Related parameters〓
1. Built-in module engine: The original phase PMW3360 optical engine, up to 12000CPI. After the maximum acceleration mode is 16000 DCPI. The maximum mouse speed is 50g.
2. Rate of return: 125, 250, 500, 1000hz adjustable.
3. Button: 8 custom buttons. Adjustable LOD can be set through the side OLED screen without driver. The mouse supports game mode vibration feedback. RGB three-color LED light group, 1680w color can be customized.
4. Size: Appearance size is 125X69X42mm.
5. Weight: 135g (without line).
6. Attributes bonus: The front side of the mouse is equipped with an OLED screen, can be customized patterns, support for custom JPG/PNG/GIF format, the user can adjust settings directly through the screen.
7. Main Control Board: Equipped with 32-bit ST ARM processor, clocked at 72Mhz and 48KB of memory. Onboard 256KB flash memory, support user-defined config settings.
8. Cable length: 0.9 m rubber cable and 2 m nylon braided cable.
9. Support self-select engine, palm shell, bottom personality nameplate replacement.
〓文开箱开
Sairui SteelSeries RIVAl700 gaming gaming mouse box. Some printing uses UV printing process.
The back of the outer box.
Features.
Jacket design, this seems to be very Sai Rui! !
Side sealing paste, packaging also seems very good. The flagship model should have a forcing.
Take out the product. SteelSeries RIVAl700 mouse body, gold-plated Mirco UBS cable X2 (rubber thread/nylon thread), manual, logo sticker.
Sairui SteelSeries RIVAl700 gaming gaming mouse.
Change the angle.
Searle SteelSeries RIVAl700 mouse overlooking effect.
The left side of the mouse.
The right side of the mouse.
The mouse is on the top surface.
The tail of the mouse.
Take a few more perspectives.
SteelSeries RIVAl700 .
SteelSeries RIVAl700 .
SteelSeries RIVAl700 .
SteelSeries RIVAl700 .
The bottom of the mouse.
Open the warning sticker at the bottom.
〓Details show 〓
Sairui SteelSeries RIVAl700 mouse uses left and right split keys.
Two-color injection keypads are more wear resistant than comparable UV coatings. This seems like a lot of products from the next home, the base will not take too long will appear to fight the oil problem.
Scale wheel, can set wheel RGB mode color through SSE . The wheel scale is clear and there is no " sticky " condition.
Three buttons are set on the side of the thumb. The trapezoidal key is " invalid " by default, and the user can set the related use via SSE . The forward and back buttons are crisp. It was thought that 2 points in orange was heart rate monitoring, but in reality it was just an " adornment " and it could clearly show " convexity. " Side skirt bump rubber TPE injection molding process, compared to the previous side of the Rival300 users criticized the rubber side of the problem is not effectively solved.
Tail RGB 16 million color Sairui LOGO lights. The palm back shell pattern uses a dark-print water technique. It feels like this texture.
The right skirt also uses one-piece non-slip bump injection molding design.
Regarding crevices, touching the seams with your fingers, there is no obvious " splintering feeling " . The accuracy of grinding tools is still very good. Will it become a hiding place for dirt in the future? This needs to be verified.
Foot placard design, FPS player favorite design! As for why, this need not be more! Sairui SteelSeries RIVAl700 game gaming mouse adopts separation line design, bottom design has a " pull buckle " design, easy to separate the cable and mouse. The " Double Hole " design facilitates the L -shaped Mirco USB to determine the mounting position.
The bottom engine adopts a modular design, and players can purchase and upgrade module engine accessories according to their preferences.
〓 Accessories Disassembly 〓
Race SteelSeries RIVAl700 gaming mouse back shell and tail nameplate for disassembly and replacement. Guess there will be an endless number of third-party mod shells / nameplates.
Remove palm back shell, effect after nameplate.
The white is a soft light mask, which can make the tail LOGO light softer and more uniform.
Gold-plated USB separation line. Both are affixed with tab sheets that support the download transfer function. A nylon braided material, a PVC material.
Gold-plated L -shaped Mirco UBS connector.
After assembling the cable effect.
Two different material cable assembly effects.
〓 Optional accessories
Palm shell. The official retail price is 79 yuan. The front of the outer box.
The back of the box.
turn on. 2 palm back shells (mirror painted version, skin scrub version), instructions.
The skin version is on the left and the mirror paint version on the right.
Palm back interior details.
Mirror version detail processing and texture.
Assembled RIVAl700 effect of skin palm back shell .
Assembled with RIVAl700 effect of mirror-painted palm back shell .
Assembled original RIVAl700 effect with palm back shell .
Optional Sairui  SteelSeries RIVAl700 gaming gaming mouse engine module. The engine module is an AOC A9800 top laser engine. Positive and negative packaging.
turn on. Independent Angahua A9800 laser module engine, manual.
With regard to the replacement of the module engine, the Phillips screwdriver can be directly unscrewed by 4 screws.
Remove the module engine after the effect.
The engine data connection is transmitted using a 12- pin double row pin. The fixed engine screws are reinforced with copper posts.
The original phase PMW3360 optical engine module, Angaohua A9800 laser engine module.
Module dismantling. Remove the 4 screws on the module.
Double PCB pins for connection.
Module dismantling details.
Upper and lower PCB design.
Optical engine assembly. You can see the original phase of the PMW3360DM-T2QU .
Engine assembly PCB front and back, and optical lens.
All engine module components, more screws.
拆 Product Disassembly 〓
The grooves on both sides of the engine module can be well inserted and inserted.
Dismantling the mouse, the replacement of the foot groove is designed to replace the foot groove. Use the tool to straighten it up.
Sairui  There are 4 screws on the bottom of the SteelSeries RIVAl700 foot sticker .
Bottom shell design front and back details. It is still more complicated to open a mold.
PCB structure.
Continue to remove the screws. You can see the rear light module PCB module assembly, the top vibrator component of the mouse, and the motherboard PCB assembly.
SteelSeries RIVAl700 mouse main control chip is ST 32 -bit ARM architecture processor, 72Mhz frequency, 48KB running memory. The side keys are jogred by kailh red dot. The top DPI switch button is the TTC white point fretting.
The heart rate detection module that has been guessed before is really just "decoration." But I was wondering if Sairui will release a wireless version of Rival900 with a heart rate monitoring module in the future? Of course, I am the landlord's husband.
This part of the sub-board PCB , really bad demolished, take an official map to show you next. Of course, players are advised here to not disassemble the Rival 700 mouse because its design is too complex and it is very likely that the components will be damaged when disassembled. If you want to remove it, you need to remove the top button board, remove the LED assembly PCB of the wheel, and pull out the side OLED screen through the window and screen cable. Left and right buttons to sairui unique orange point fretting official claimed the life of up to 30 million times, but the landlord feel the domestic Omron micro and white point 7N (20M) compared to some "hard." Of course, this is also the representative “ feature †of the steel mill.
Holding effect
Hand grip. The landlord believes that the trapezoidal buttons on the side are not particularly good enough, or it may be due to the problems caused by the landlord's short hands. However, the overall grip of the SteelSeries RIVAl700 is still awesome, with the design style that the Race Royale should have.
Power on the computer
on board.

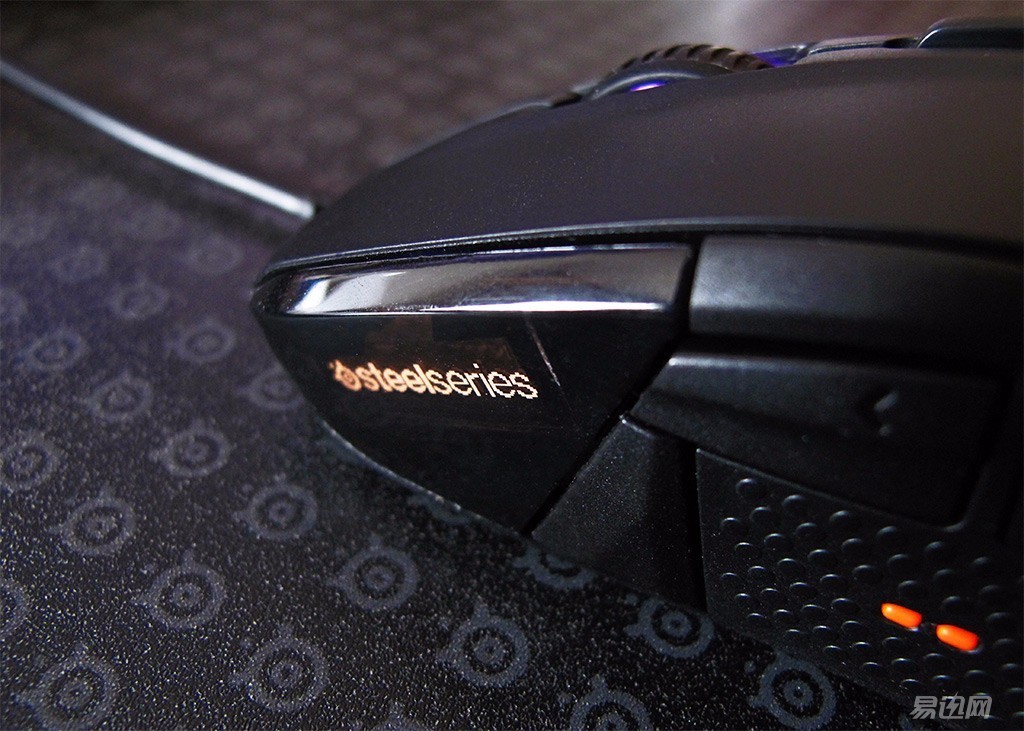

Side OLED screen display effect.
The power-on effect is still very good. Tail LOGO light effects can be set through SSE , with high modes and playability.
〓 Driver Firmware
SteelSeries Engine driver interface.
Drive the interface, to tell the truth, if the landlord introduces every function, too much! ! I feel good about writing here.
About picture replacement and color settings.
About DPI and mouse acceleration, offset correction, refresh rate, etc.
GameSense for gamers. Drive really strong! You can simply use the "luxury" to describe.
〓 Gaming experience 〓
Look at the record, I haven't played csgo in the past two months. I've been very busy recently.
〓 〓 〓 〓
The Sairui  SteelSeries RIVAl700 mouse, whether it is working feel, or internal dismantling details have experienced the level of a large factory should have. For nearly two years the factory next door flagship product, I was really, huh, huh! Long snack bar next door factory, product design, so many small problems, how to afford a so-called " flagship " product positioning, look at Rival700 mouse 699 yuan price, can be said to be conscience ( I here did not raise anyone who black ). Think of Sairui this RIVAl700 is also completely pressure!
